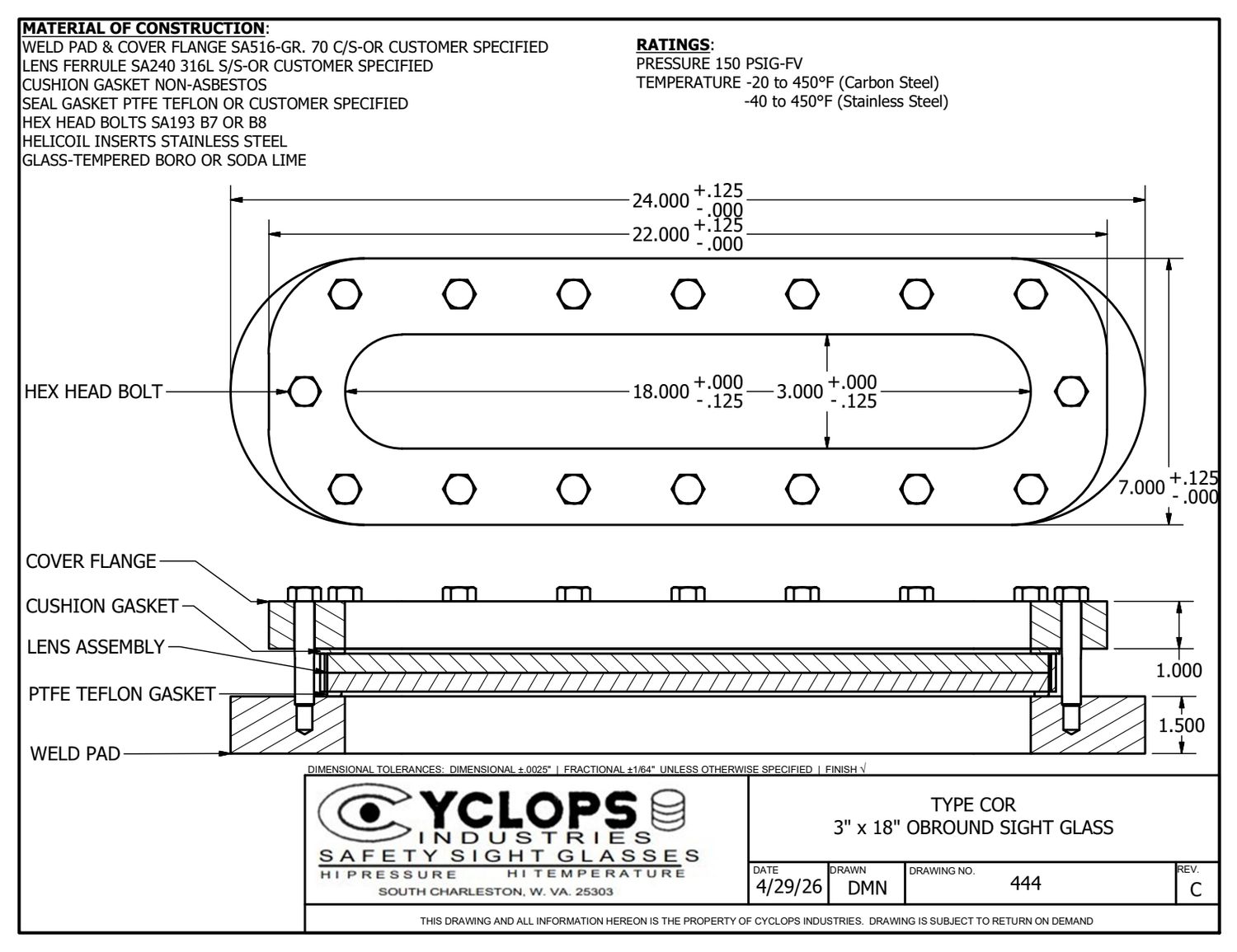

Type COR 444 Obround Sight Glass
+3

Type COR 444 Obround Sight Glass

COR 444 SG
$0.00
In stock
1
Product Details
Maker: Cyclops Industries, Inc.
Size: 3 x 18 in, 76.2 x 457.2 mm
Weld Pad Material: 316L-W / 3 x 18 in (76.2 x 457.2 mm) opening, PVQ plate, S/S ASME SA-240 304L
Flange Material: 316L-W / 3 x 18 in (76.2 x 457.2 mm) opening, PVQ plate, S/S ASME SA-240 304L
Ferrule Material: Carbon Steel, Stainless Steel
Operating Temperature: 450 ºF, 232 ºC
Operating Pressure: 200 psi
Factory Mutual Approved: US and Canada

NOTES: COR 444: Obround (3" x 18") sight glass can be used as a level gauge available with spray nozzles or radiused to customer specifications.

  • 1/4 in (6.35 mm) 0 Weep hole available when specified.
  • It is recommended that reinforcement calculations on all ASME code constructed vessels be carefully checked to insure proper reinforcement of the vessel wall.
